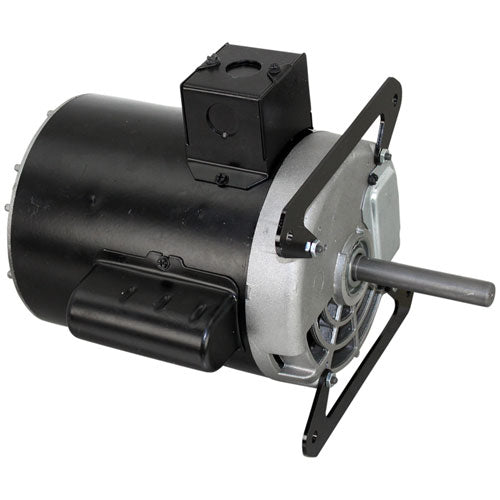

Picture of MOTOR FOR GARLAND PART# 1686711

Garland

Motor For Garland Part# 1686711
Part #1686711

SKU: 0
Regular price $299.99
Regular price Sale price $299.99
Sale Sold out
 More payment options
Introducing our blower motor designed for Garland, Part # 1686711. This motor operates at two speeds with a 115V power supply. It has a .75/.21 HP rating, rotates at 1725/1140 RPM, and draws 9.8/4.2 AMP. The motor features a CW rotation, a 3-3/4" x 5/8" shaft, and a Y56Y frame size. It comes with a 6-3/16" x 6-3/16" mounting bracket with four 5/16" holes and 3/16" studs spaced on 4" centers.
View full details

Product Specs

2 Speed
115V
.75/.21 Hp
1Ph 1725/1140 Rpm
9.8/4.2 Amp Cw Rotation 3-3/4" X 5/8" Shaft
Y56Y Frame 6-3/16" X 6-3/16" Mtg. Brkt.
Qty 4 Outside 5/16" Holes


Dimensions

L x W x H

7"x7"x5"

Weight

25.0 lb
